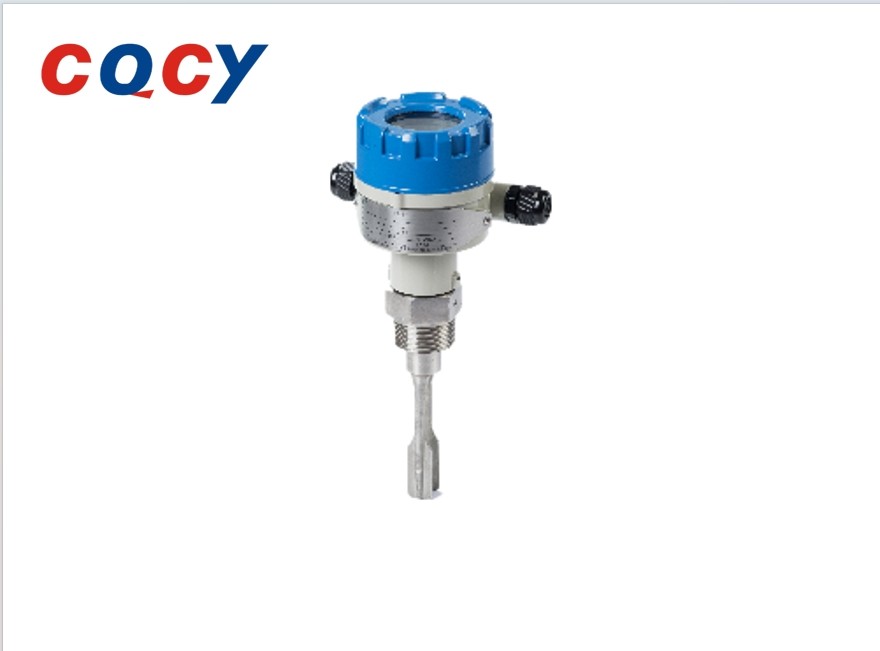

IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz

Name: IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz
Brand: CQCY
Price: 50 USD

IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz Manufactures

Brand Name : CQCY

Model Number : VS series tuning fork bit switch(limit switch

Certification : CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI

Place of Origin : Shanghai, China

MOQ : 1set

Price : USD+50 dollars to 1000 dollars+1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000+1set+per day

Delivery Time : 10-30 work days

Packaging Details : Carton packing

1. Frequency of oscillation : Liquid short fork 1200Hz; liquid long fork 380Hz; solid sound fork 130Hz; vibration rod 350 HZZ

2.Working voltage : Liquid short fork 1200Hz; liquid long fork 380Hz; solid sound fork 130Hz; vibration rod 350 HZZ 18~36VDC (output ripple less than 100 mVp-p) 90~260VAC 50 / 60Hz

3.Case protection grade : IP67

4.Ambient temperature : -40~80℃

5.Security certification information : SIL 2 gas explosion-proof: Ex d IIC T2 / T3 / T 4 Gb dust explosion-proof: Ex tD A20 IP67 T135℃ / T200℃ / T300℃

Contact Now

VS series tuning fork bit switch(limit switch /bad environment also has no effect on the testing)

VS series sound switch is a universal position limit switch. Under the excitation of piezoelectric ceramics, the stainless steel sound also vibrates at its resonant frequency. When the measured material contacts and gradually immerse the sound, the vibration frequency and amplitude of the sound will gradually change, these changes will be converted by the electronic unit after detection and processing, to achieve the purpose of indication or control.

IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz

1. Strong adaptability: different dielectric constant and density of the measured materials have no impact on the measurement, and scaling, agitation, turbulence, bubbles, vibration, high temperature, high pressure and other harsh environments have no impact on the detection:

2. Maintenance free: because the detection process of sound and position switch is completed by electronic circuit with no active parts, no maintenance is installed and put into operation: 3. No adjustment: Because the detection of sound and position switch is not affected by the electrical parameters and density of the measured medium, no matter what kind of medium is measured requires site adjustment. IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz
